Serverless Postgres Change Data Capture

TL;DR

Rapidly increase adoption of an event-driven architecture by auto-publishing events when database changes occur.

Adopting an event-driven architecture can be a formidable paradigm shift for your developers. However, especially in monolith-centric ecosystems with a single database, you can accelerate the adoption of event-driven architecture by automatically publishing database change events as they occur.

By leveraging logical replication, AWS Lambda, and an event-driven architecture powered by EventBridge, we can automatically produce events with information about changes to our database in near real-time. This approach removes the need to manually PutEvents throughout your application code. In my portfolio, you can learn more about my general approach to event-driven architectures.

Concrete Example

Imagine your database has a users table. And let’s say you want to trigger a Welcome email campaign with your CRM when a new user is created. With this system, EventBridge receives an event when a new user is created in the database:

{
  "detail-type": "DatabaseEvent",
  "resources": ["monolith_database"],
  "source": "com.benlimmer.Database",
  "detail": {
    "txnid": 123456789,
    "timestamp": "2021-04-28T16:01:22.131231+00:00",
    "schema": "public",
    "table": "users",
    "operation": "insert",
    "newValues": {
      "id": {
        "type": "integer",
        "value": 1
      },
      "first_name": {
        "type": "string",
        "value": "Ben"
      },
      "last_name": {
        "type": "string",
        "value": "Limmer"
      },
      "email": {
        "type": "string",
        "value": "ben@example.com"
      }
    },
    "changedValues": ["id", "first_name", "last_name", "email"]
  }
}

Then, with a simple EventBridge rule, you can trigger a Lambda function to initiate the campaign for this user.

{
  "detail-type": ["DatabaseEvent"],
  "resources": ["monolith_database"],
  "detail": {
    "schema": "public",
    "table": "users",
    "operate": "insert"
  }
}

Taking this example a bit further, imagine your Lambda function handled all communication between your system and your customer engagement platform. You can use these auto-generated database events to do all kinds of things without needing to manually PutEvent from your backend application.

For instance, you could pay attention to when the user updates their email address and update it in your third-party engagement platform:

{
  "detail-type": "DatabaseEvent",
  "resources": ["monolith_database"],
  "source": "com.benlimmer.Database",
  "detail": {
    "txnid": 234567891,
    "timestamp": "2021-05-01T17:01:22.131231+00:00",
    "schema": "public",
    "table": "users",
    "operation": "update",
    "newValues": {
      "id": {
        "type": "integer",
        "value": 1
      },
      "first_name": {
        "type": "string",
        "value": "Ben"
      },
      "last_name": {
        "type": "string",
        "value": "Limmer"
      },
      "email": {
        "type": "string",
        "value": "ben_new@example.com"
      }
    },
    "oldValues": {
      "id": {
        "type": "integer",
        "value": 1
      },
      "first_name": {
        "type": "string",
        "value": "Ben"
      },
      "last_name": {
        "type": "string",
        "value": "Limmer"
      },
      "email": {
        "type": "string",
        "value": "ben@example.com"
      }
    },
    "changedValues": ["email"]
  }
}

Or if a user requests deletion, say, under a “Right to Be Forgotten” request, you can trigger deletion in your engagement platform:

{
  "detail-type": "DatabaseEvent",
  "resources": ["monolith_database"],
  "source": "com.benlimmer.Database",
  "detail": {
    "txnid": 345678912,
    "timestamp": "2021-05-02T01:01:22.131231+00:00",
    "schema": "public",
    "table": "users",
    "operation": "delete",
    "oldValues": {
      "id": {
        "type": "integer",
        "value": 1
      },
      "first_name": {
        "type": "string",
        "value": "Ben"
      },
      "last_name": {
        "type": "string",
        "value": "Limmer"
      },
      "email": {
        "type": "string",
        "value": "ben_new@example.com"
      }
    },
    "changedValues": ["id", "first_name", "last_name", "email"]
  }
}

As you can see, these auto-generated events provide lots of information without spending time writing and triggering specific events for each action.

With this solution, every row of every table is automatically captured and published to EventBridge. So when migrations occur, the system automatically picks up the change and starts publishing without requiring additional code or deployment. So your developers write migrations as they usually do and can start listening for events immediately afterward.

Case Study

In 2020, I set up this system for a client with a monolithic backend and a new Event-Driven Architecture powered by AWS EventBridge. As a team of fewer than ten developers, they wanted to move quickly with a primarily monolithic application while breaking out third-party communications to separate Lambda functions.

By leveraging these automatically-generated database events, they quickly created several microservices communicating with third parties like Quickbooks, Salesforce, PandaDoc, SendGrid, and more. These microservices provided simple decoupling while keeping most business-case logic in their monolithic application.

Developers found the “paved road” experience of creating a new handler delightful. A hygen generator asked questions to create the Infrastructure-as-Code, including an EventBridge Rule to trigger a TypeScript lambda, all predefined and configured.

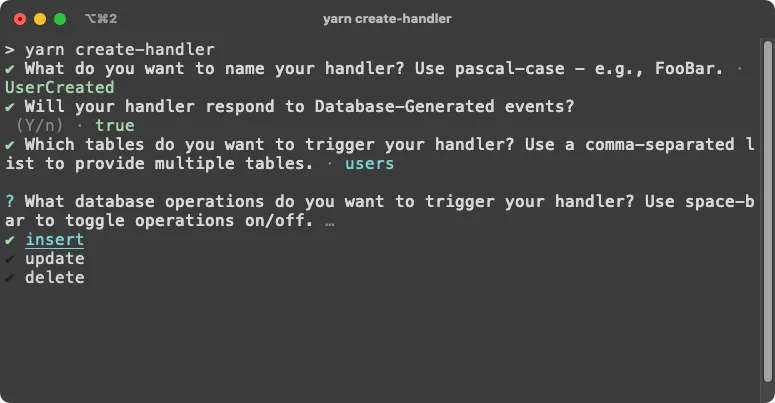

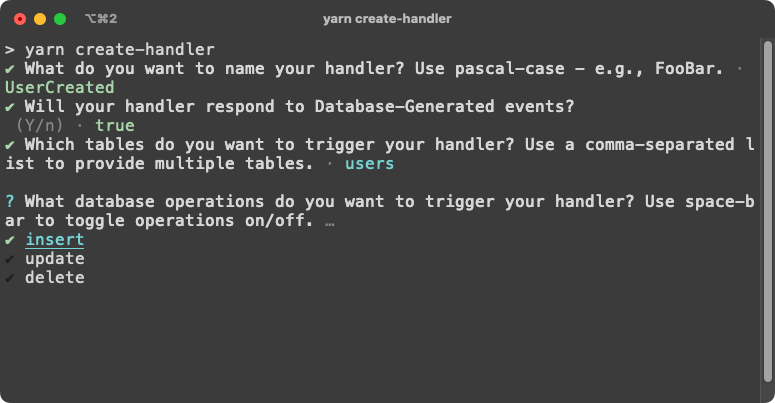

A hygen code generator walking the user through creating a new EventBridge target

This system allowed this small team to be agile, producing decoupled integration code with minimal overhead or boilerplate. Furthermore, as the team grows, having this logic already decoupled will allow separate teams to own integrations without the other operational overhead of traditional microservices environments.
